ExtendFresh™ Plus Temperature Management SystemEnsures ingredients remain fresh for maximum taste and texture using a sensor-controlled system with a variable-capacity compressor. There is one thermistor in the freezer and one thermistor in the refrigerator.
Interior Water Dispenserprovides easy access to filtered water inside the refrigerator
Professionally-Inspired DesignA bold blend of professionally-inspired styling and sleek touches for the home. The striking built-in refrigerator features Satin Textured Handles with iconic KitchenAid Brand Medallions while a Platinum Interior Design enhances the beauty on the inside.
Produce PreserverAbsorbs ethylene gas emitted by many fruits and vegetables, causing them to over ripen. By removing ethylene, the produce preserver helps extend freshness.
FreshChill™ Temperature-Controlled Full-Width PantryLets you properly store everything from meats to produce with a manual temperature setting. It gives you total control over of the amount of cool air that enters the drawer.
Humidity Controlled CrispersProvide a dedicated storage option with adjustable humidity levels to keep fresh food in an optimal environment.
Automatic Ice MakerEnsures a constant supply of ice on hand at all times for entertaining and everyday use.
LED LightingIlluminates the inside of the refrigerator and freezer giving for better visibility. Unlike incandescent bulbs, LED lights use less energy, are maintenance-free and never need to be replaced.
Max CoolWhen selected, automatically adjusts the temperature in the refrigerator and freezer to the lowest setting when appropriate. This keeps the refrigerator at the ideal temperature when loading groceries, the doors are frequently opened or in higher room temperatures.
Metallic Accents on Shelf TrimProvide a touch of elegance and complement the high gloss interior finish of the refrigerator.
Control LocationInterior Up Front
Door Ajar Open AlarmYes
Max Cool Fast CoolYes
Water Filter Indicator ResetYes
Control LockoutNo
Amps15
Volts115
Door TypePull-Out
Freezer Drawer Basket1 Full Width Lower Plastic; 1 Full Width Upper Plastic
Door BinsNo
LightYes
Freezer Number Of ShelvesNone
IcemakerYes
Icemaker LocationFreezer
Fresh Flow Air Filter IncludedYes
Water Filter LocationInterior
Water Filter Part NumberEDR1RXD1
Connectivity
Works With
Types Of IceN/A
Dispenser OptionsFiltered Water
Dispenser TypeInterior Water Only
Freezer Volume Cu Ft6.34
Refrigerator Volume Cu Ft13.34
Total Volume Cu Ft19.68
Fingerprint ResistantNo
Country Of OriginMexico
Optional AccessoriesEDR1RXD1B
Product To Product PairsKFGG500EWH
Extended Service Plan Parent
Kad RefrigeratorAutomatic Ice Maker; ExtendFresh Temperature Management System; FreshChill™ Temperature Controlled Full-Width Pantry; Interior Water Dispenser; Produce Preserver
ULYes
ADA CompliantNo
Ule Environmentally Preferred CertifiedYes
Energy Star QualifiedNo
Cee TierNot Rated
Energy Rating Kwh Year618
Door FinishSmooth
Handle MaterialMetal
Hidden HingeYes
Reversible DoorNo
Handle ColorStainless Steel
Door StyleContour
Cabinet FinishTextured
Number Of Doors3
Base Grille ColorWhite
Cabinet ColorWhite
Handle TypeReach-Through Handle
Installation ConfigurationFreestanding
Type Of RefrigeratorFrench Door
Cooling TypeSingle Evaporator
Counter DepthNo
Humidity Controlled DrawersYes
LightingLED
Conventional Shelves
Number Of Interior Shelves3
Pantry DrawerYes
Supplementary ContainersN/A
Non Climate Control Drawers
Temperature Controlled Drawers1 Full-Width
Door Bins1 Adjustable Full-Width; 1 Fixed Full-Width; 3 Adjustable Gallon
Spill Proof Glass Shelves1 Adjustable Full-Width Flip Down; 1 Adjustable Partial Width Flip Down; 1 Fixed Full-Width
Carton Depth36.0"
Carton Height69.0"
Carton Width31.0"

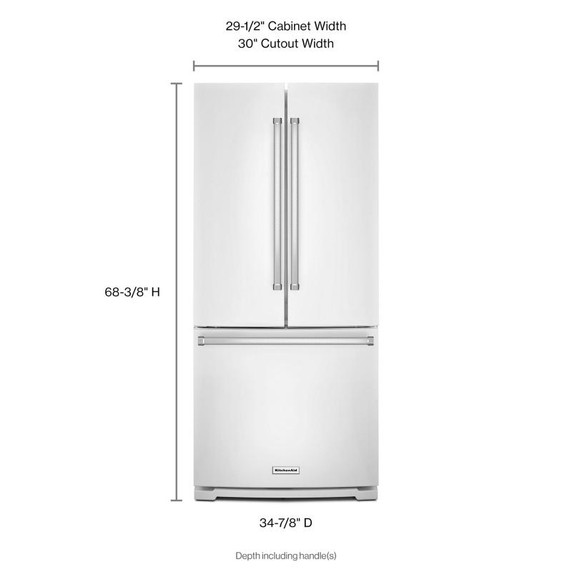

Depth Closed Excluding Handles32.25"
Depth Closed Including Handles34.88"
Depth With Door Open 90 Degree44.13"
Depth34.88"
Gross Weight255.0 lbs.
Height68.38"
Net Weight250.0 lbs.
Width30.13"
Cabinet Width29.5"
Cutout Height68.0"
Cutout Width30.0"
Depth Excluding Doors28.0"
Height To Top Of Cabinet67.5"
Height To Top Of Door Hinge68.38"
Popular Height68 Inch Tall
Popular Width30 Inch Wide
