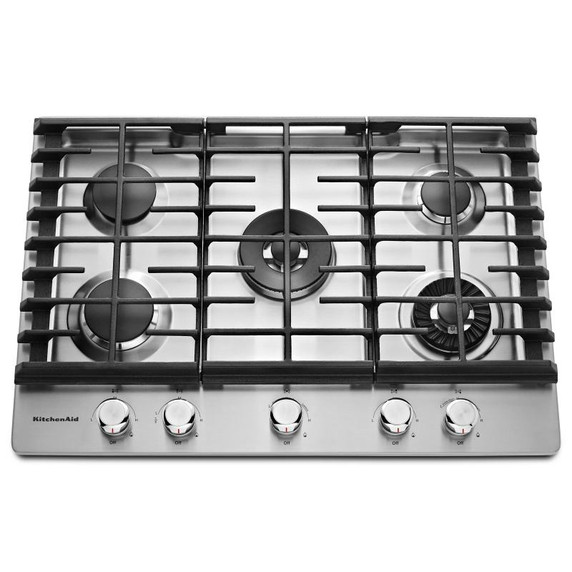

Kitchenaid® 30" 5-Burner Gas Cooktop with Griddle KCGS950ESS

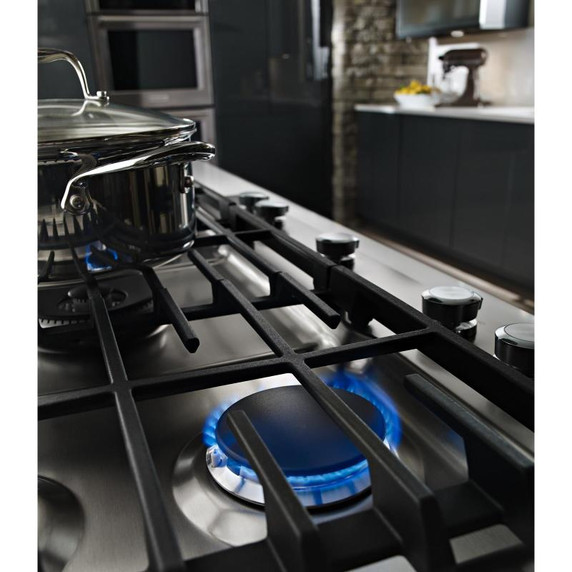

10,000 BTU Even-Heat™ Torch BurnerFeatures an exclusive design that provides a small flame for delicate simmering and a larger one that distributes high heat across the whole pan for more even cooking.

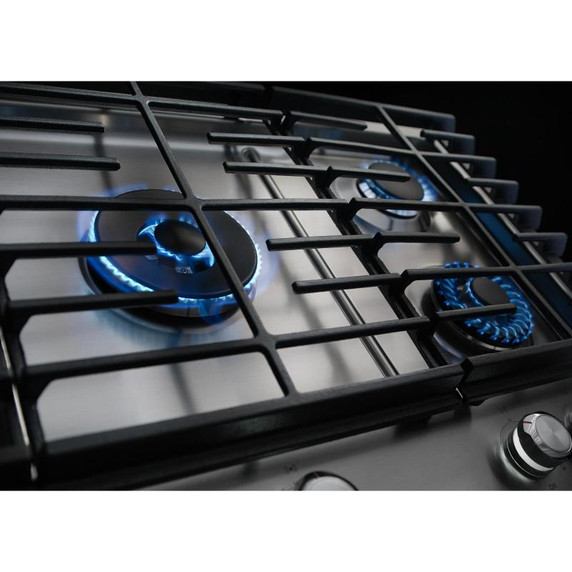

17K BTU Professional Dual Ring BurnerAllows you to go from one small flame for precise simmering to a dual flame for powerful boiling, all on the same burner.

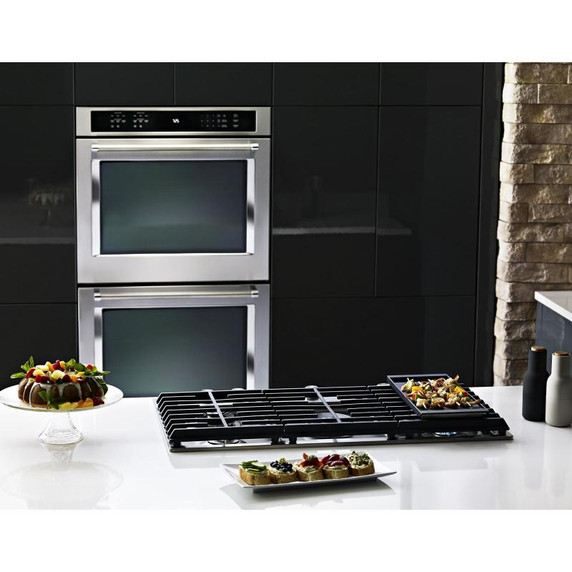

Removable Griddle IncludedProvides a one-piece flat surface that can be used on the right, left, or center of the cooktop surface, and is ideal for making a range of dishes from crepes to quesadillas.
CookShield Finishprotects the cooktop from stains that may
occur with high temperature cooking. The
permanent finish makes it easy to wipe clean
without harsh chemicals so it looks clean,
bright and beautiful even longer.
Multi-Finish Back-Lit KnobsDeliver a beautiful accent with pleasant LED lights that let you know when the burner is in use.

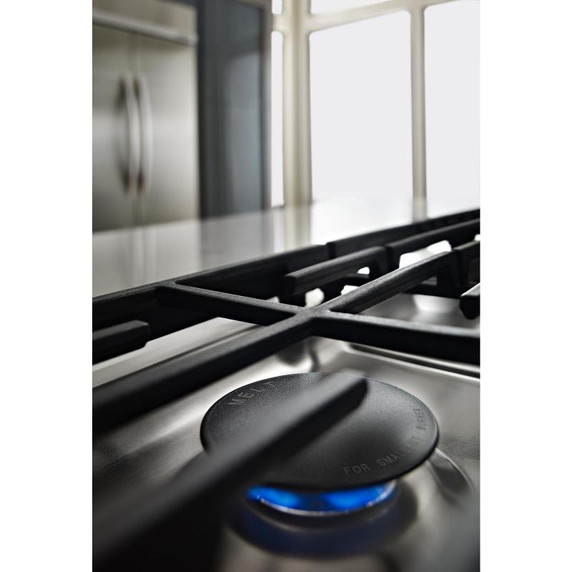

6,000 BTU Even-Heat™ Simmer BurnerA diffuser plate allows more control of the flame at the lowest setting, for more precise simmering and melting.

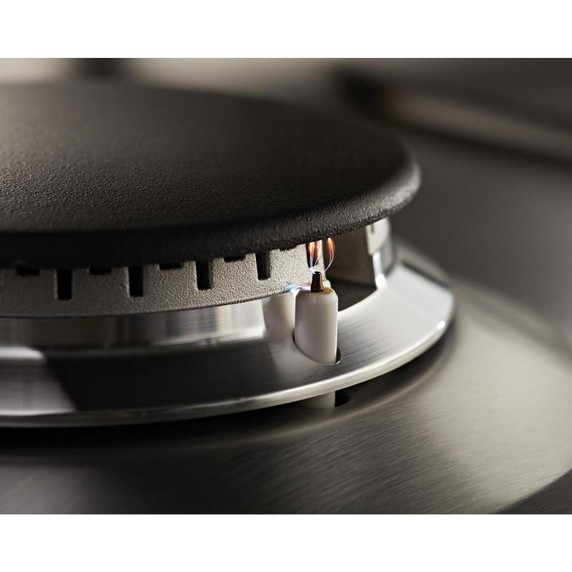

Electronic Ignition and Automatic ReignitionLights burners with an electric spark instead of a pilot light. For more reliable performance, burners are relit if the flame is blown out.
Full-Width Cast-Iron GratesEnhance the beautiful look of the cooktop and allow easy movement of cookware around the entire cooking surface.
LP Conversion Kit IncludedAllows you to convert the cooktop so it can be used with LP gas.
Controls
Control TypeManual
Control LocationFront
Knob TypeMetal
Electrical
Volts120
Hz60
Amps15
Power Cord IncludedYes
Configuration and Overview
Fuel TypeGas
Specifications
Country Of OriginUSA
Extended Service Plan ParentEW08IW4Y, EW08IW2Y, EW08IW1Y
Product To Product PairsUVL5430JSS, KVUB600DSS, KVWB400DSS, KXD4630YSS, KVWB600DSS, KVUB400GSS, KVWB600HBS
Features
GriddleYes
Heating Element On Indicator LightYes
Hot Surface Indicator LightNo
Automatic Pan DetectionNo
Digital DisplayNo
Downdraft VentNo
Installs Over Built In OvenYes
LP ConvertibleYes - Kit Included
Power BoostNo
Power Outage CompatibleYes
Refinements
Kad CooktopADA Compliant; Cookshield Finish; Even-Heat Melt Burner; Torch Burner
Certifications
ULYes
ADA CompliantYes
Description
Size In30
Cooktop TypeTraditional
Combinations With OvenKOES527P; KOES530P; KOSC104FSS; KOSC504; KOSE500; KOSE507; KOSE900; KOST100; KOST107
Cooktop Details
Cooktop Element StyleSealed Burners
Center Rear Element Burner Power17000BTU
Center Rear Element Burner TypeHigh Output
Left Front Element Burner Power12000BTU
Left Front Element Burner TypeSealed Burner
Left Rear Element Burner Power6000BTU
Number Of Cooking Element Burners5
Right Front Element Burner Power10000BTU
Right Front Element Burner TypeEven-Heat™
Right Rear Element Burner Power7000BTU
Right Rear Element Burner TypeSealed Burner
Left Rear Element Burner TypeEven-Heat™

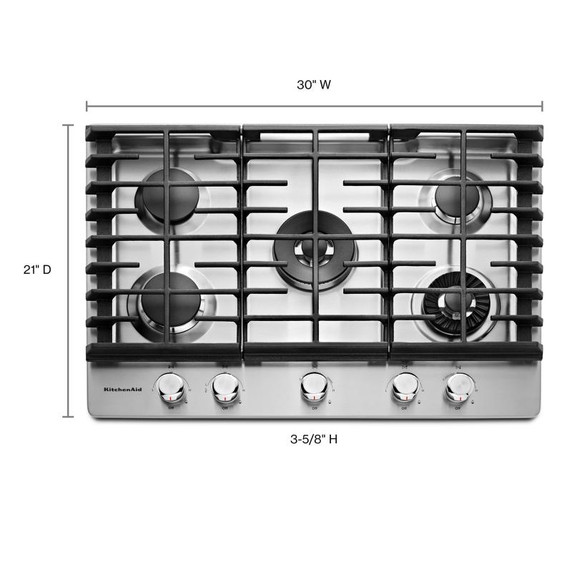

Depth21.0"
Height3.69"
Maximum Height4.59"
Net Weight0.0 lbs.
Width30.0"
Cutout Depth19.81"
Cutout Height5.25"
Cutout Width28.88"
Carton Depth Inch25.0
Carton Height Inch12.04
Carton Width Inch34.76
