This all-in-one dual fuel range includes Downdraft, which integrates the ventilation system so a separate hood is not needed. Smoke and odours can be removed outside or filtered air can be recirculated inside. This range allows you to achieve flawless cooking results thanks to Even-Heat™ True Convection. The unique bow-tie design and convection fan ensure the entire oven is heated perfectly. It also has a Steam Rack that offers the ability to add moisture to the oven and enhances cooking results.
Features
Top 3 Features

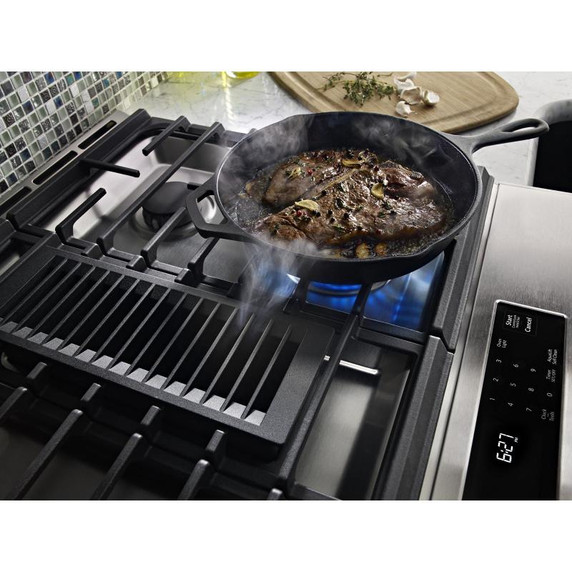

DowndraftIntegrates the ventilation system right into the range so that a separate hood is not needed. Smoke and odors can be removed and taken outside or air can be filtered and recirculated inside. A duct free kit can be purchased separately.
Even-Heat™ True ConvectionProduces flawless results. The unique bow-tie design and convection fan ensure the inside of the entire oven is heated to, and stays at, the perfect temperature.
Steam RackOffers the ability to provide additional moisture to the inside of the oven, enhancing cooking results.
Additional Features

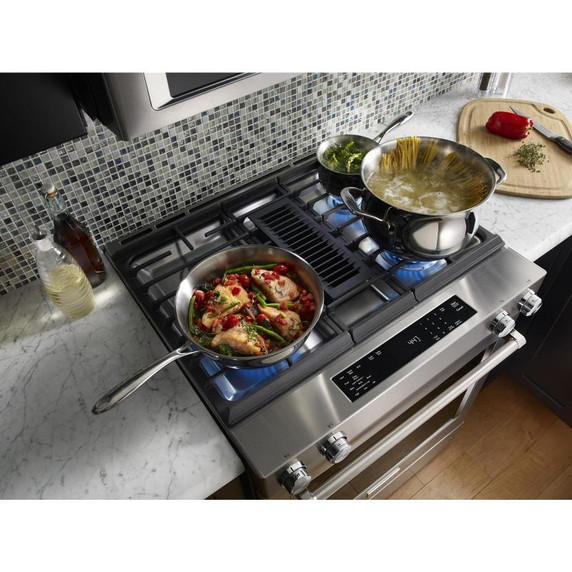

4 burners (5k, 9.2k, 15k and 17k)Provides the perfect range of cooking power from 5,000 to 17,000 BTU, so you can go from a rolling boil to a delicate simmer.
EasyConvect™ ConversionTakes the guesswork out of convection cooking by converting conventional settings for recipes to convection settings for you.
Aqualift®Cleans your oven in less than an hour without odors and at a temperature below 200°F. This innovative system combines low heat with water to release baked-on spills.
Glass Touch ControlsOffer an intuitive, easy-to-use touch screen experience.
SatinGlide® Max RacksMove smoothly in and out, allowing effortless loading and unloading, even with large or heavy dishes.
Side Trim Accessory KitThis optional accessory kit will cover damaged countertops and unfinished edges from an old slide- in range to make them beautiful again. Trim pieces come in black, white and stainless to seamlessly match your new range.
Specifications
Controls
Knob ColorStainless Steel
Electronic Display TypeDigital
Configuration and Overview
Energy
Annual Energy Usage Kwh393
Specifications
Matte Finish Vs Satin FinishMatte Finish
Cast Iron Vs PorecelainCast Iron Grates
Extended Service Plan ParentEW09IW1Y, EW09IW2Y, EW09IW4Y
Optional AccessoriesW10285447, W10432544, W10655448, W10655449, W10655450, W10675026, W10675027, W10731887, W10768190, W10800530
Product To Product PairsKBBL306ESS, KBBR306ESS, KBFN502ESS, KBFN506ESS, KFDD500ESS, KFGD500ESS, KMBP100ESS, KMBP107ESS, KOWT100ESS, KOWT104ESS, KOWT107ESS, KRBL102ESS, KRBL109ESS, KRBR102ESS, KRBR109ESS, KRFC302ESS, KRFC704FPS, KRFF300ESS, KRFF302ESS, KRFF305ESS, KTTS505ESS, KVIB606DSS, KVUB600DSS, KVUB606DSS, KVWB400DSS, KVWB406DSS, KVWB600DSS, KVWB606DSS, KXD4630YSS, KXD4636YSS
Features
Hot Surface Indicator LightNo
Automatic Convection Conversion Temperature AdjustYes
Power Outage CompatibleNo
Heating Element On Indicator LightNo
Refinements
Kad RangeADA Compliant; Downdraft; EasyConvect™ Conversion; Even-Heat™ True Convection; FIT System; SatinGlide™ Racks; Steam Rack
Certifications
Energy Rating Kwh Year393
Exterior
Handle ColorStainless Steel
Configuration
Oven ConfigurationSingle Oven
Range ConfigurationSlide-In
Details
Broiler LocationTop of Oven
Convection FunctionsBake; Broil; Roast
Oven Light Switch LocationOven Control
Oven Cooking SystemConvection
Oven Light TypeIncandescent
Convection Element TypeFan
Oven Control TypeElectronic Touch
Broiler Element Power4000W
Cooktop Surface MaterialStainless Steel
Oven Interior Depth In Inches20.75
Oven Rack Type1 Max Capacity, 1 Gliding Roll-Out, 1 Steam Rack
Oven Interior Width In Inches24.13
Convection Element Power Watts3200
Oven Cleaning TypeAquaLift® Self-Clean
Cooktop Details
Cooktop Element StyleSealed Burners
Number Of Cooking Element Burners4
Left Front Element Burner TypeSealed Burner
Right Rear Element Burner TypeSealed Burner
Left Rear Element Burner TypeSealed Burner
Right Front Element Burner TypeSealed Burner
Left Rear Element Burner Power5000BTU
Right Front Element Burner Power15000BTU
Cooktop Surface ColorStainless Steel
Left Front Element Burner Power17000BTU
Right Rear Element Burner Power9200BTU
Grate DetailsCast Iron Grates; Continuous; Dishwasher Safe; Matte Finish

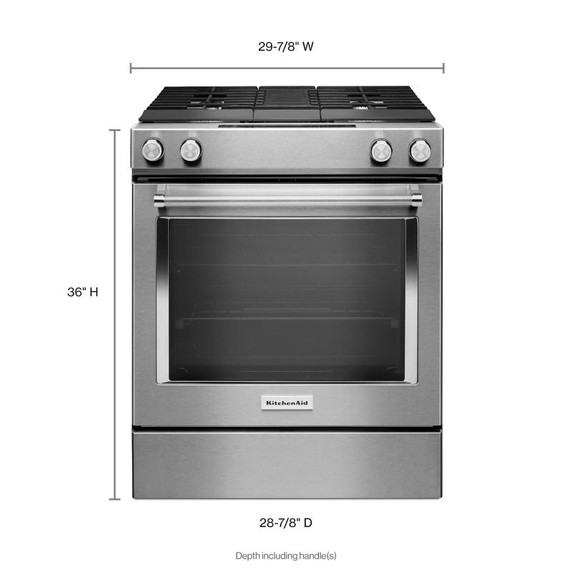

Dimensions
Depth Closed Including Handles28.88"
Depth With Door Open 90 Degree48.75"
Capacity FT3 (cubic feet)6.4
