Unbranded

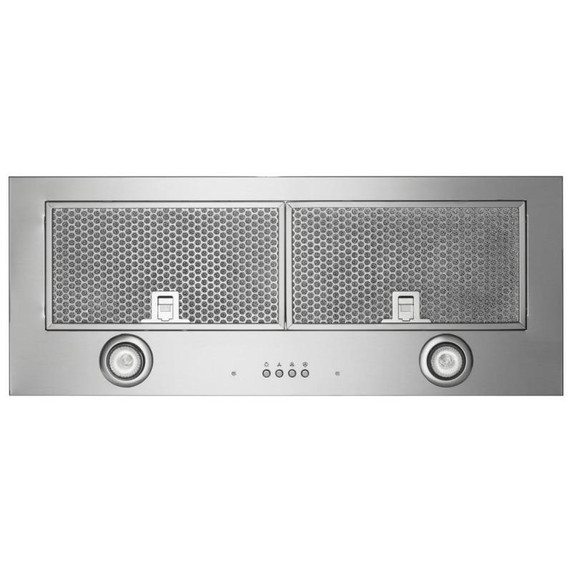

30" Custom Hood Liner UVL5430JSS
Three-Speed FanFeatures low, medium and high settings, so you can choose the right fan speed for every cooking adventure, from gentle simmering to high-heat searing.
400 CFM Motor Class Ventilation SystemCompletes your kitchen with ventilation to match the performance of conventional ranges and cooktops.
Two LED Lights with Night Light SettingProvide two levels of brightness, allowing you to illuminate the entire cooking surface below with natural-looking light or subtly accent the kitchen with a soft, inviting glow.

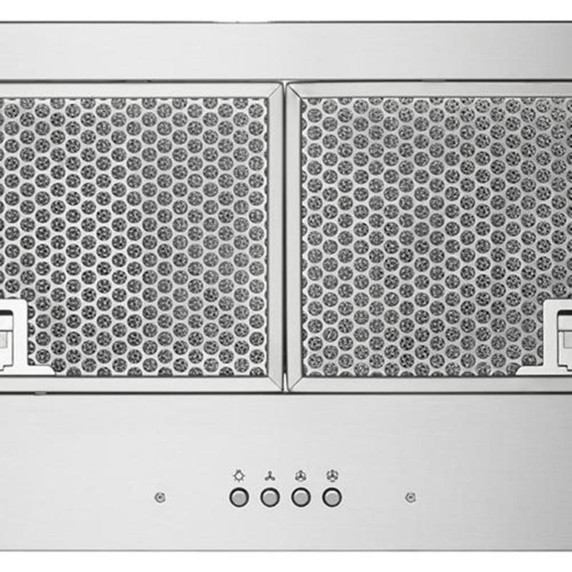

Removable FiltersUse multiple layers of screening to help capture the grease, steam and odors of high-heat cooking. Filters are removable for easy cleaning with soap and water.
KitchenAid® Custom Hood LinersKitchenAid® Custom Hood Liners allow you to conceal ventilation within custom cabinetry or a decorative hood cover, creating a style all your own.
Controls
Control LocationHidden
Control TypeManual
Electrical
Volts120
Hz60
Amps2.0999999
Specifications
Country Of OriginMexico
Optional AccessoriesW10272068, W10490330
Extended Service Plan ParentEW04IW1Y, EW04IW2Y, EW04IW4Y
Product To Product PairsKSGB900ESS, YKSEB900EWH, KCIG550JSS, YWEE750H0HV, MEC8830HB, KFDC500JMH, KFDC500JPA, WCE55US0HS, YWFC315S0JS, YWEE750H0HW, YKSEG700EBS, YMET8800FZ, YWEE515S0LB, YKFEG500EWH, YKFED500ESS, KFDC500JMB, WEG750H0HZ, KFDC500JIB, KFGC500JBK, KFGG500EBS, WCI55US0JB, KFGC500JMH, WGG745S0FS, WEG750H0HB, KFGD500ESS, KFGC500JSC, MGT8800FZ, YWFE745H0FH, WCE55US0HB, MEC8830HS, KCES550HSS, KFDC500JSC, WCE97US0KS, KCIG550JBL, YKSDB900ESS, YWEE750H0HZ, YWFC150M0JW, YWEE750H0HB, KCGC500JSS, WCE77US0HS, KCGS350ESS, YWEE515S0LV, WEGA25H0HZ, YWEEA25H0HZ, KCGS950ESS, YWEE745H0LZ, YWEE515S0LS, KFGC500JMB, KFDC500JAV, KFGC500JAV, KFDC500JSS, KFDC500JBK, YWFC315S0JW, KCES550HBL, WEG750H0HW, KFGC500JSS, KFDC500JYP, KFGC500JYP, WEG515S0LS, WCI55US0JS, KFGC500JIB, KFGG500ESS, KFGD500EBS, KSGG700ESS, KSGG700EBS, KFDD500ESS, YWGE745C0FS, YKSEG700ESS, YWEE515S0LW, KCES950KBL, YWFE745H0FS, MGC7430DS, WEG515S0LV, WCE77US0HB, KCES950KSS, YWFE515S0JS, YKFEG500ESS, WCE97US0KB, KFGC500JPA, YKFEG500EBS, KFGG500EWH, YKSEB900ESS, WEG750H0HV, KCGS550ESS, YWFC150M0JB
Features
Task Light TypeLED
Task LightingYes
Night LightNo
Certifications
ULYes
Energy Star QualifiedNo
Description
Size In30
Hood TypeUnder-the-Cabinet
Ventilation System
Duct DirectionVertical
Duct Outlet Size In6
Duct TypeRound
FiltersGrease Filters
VentingExterior or Recirculating
Exhaust Vent LocationTop
Sound Max Speed Sones7.5
Auto FunctionNo
Duct Length14.0
Carton Depth32.95"
Carton Height16.77"
Carton Width15.31"

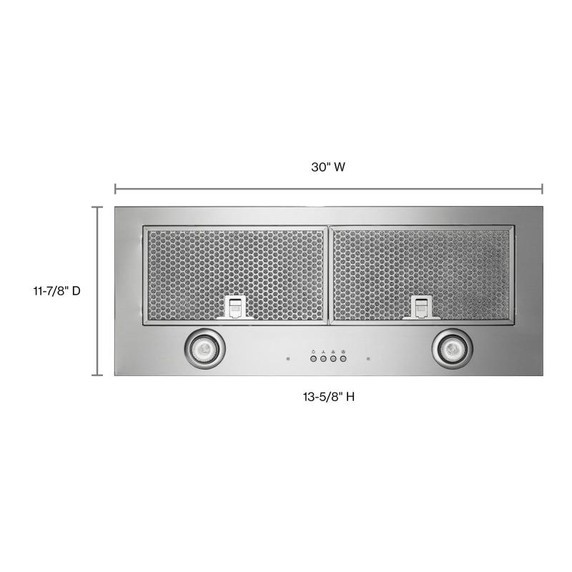

Depth11.88"
Gross Weight33.51 lbs.
Width30.0"
