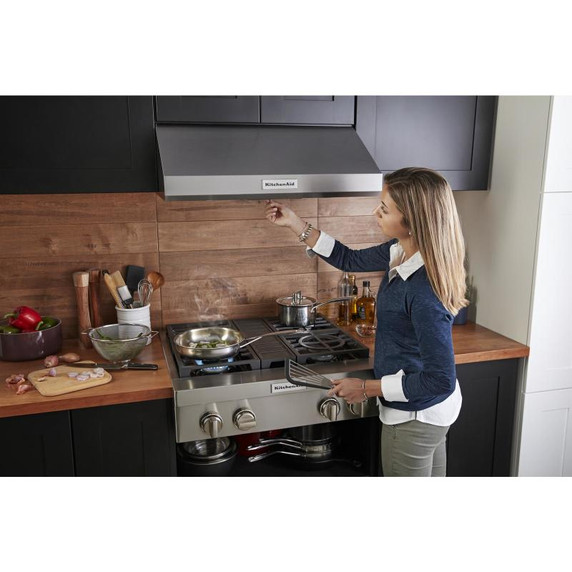

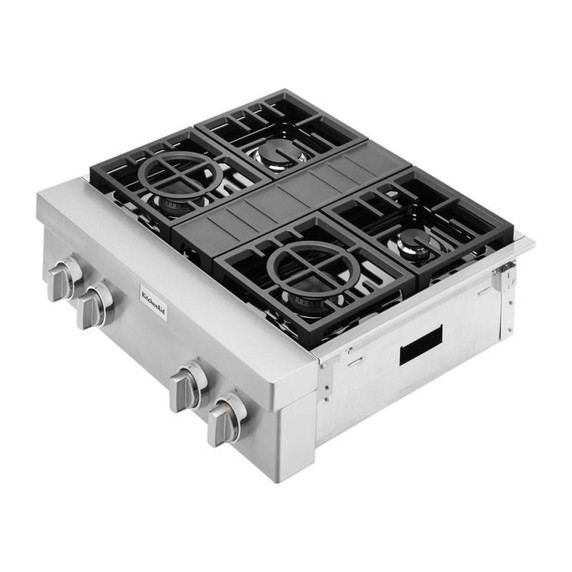

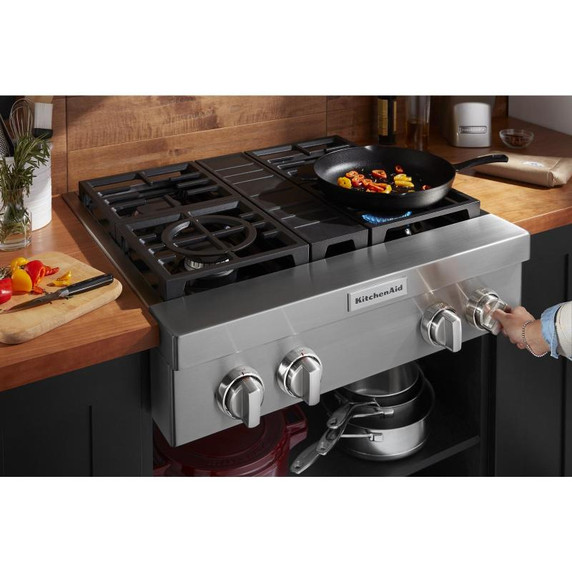

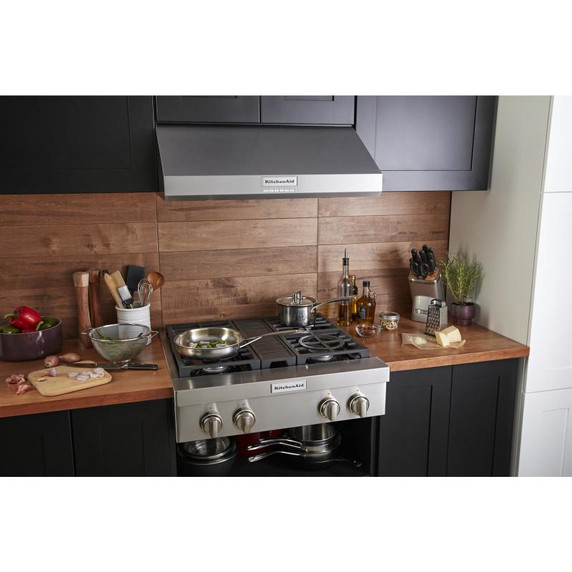

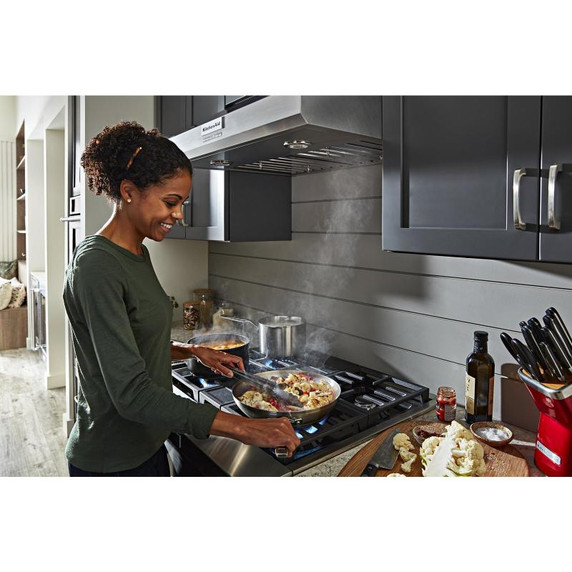

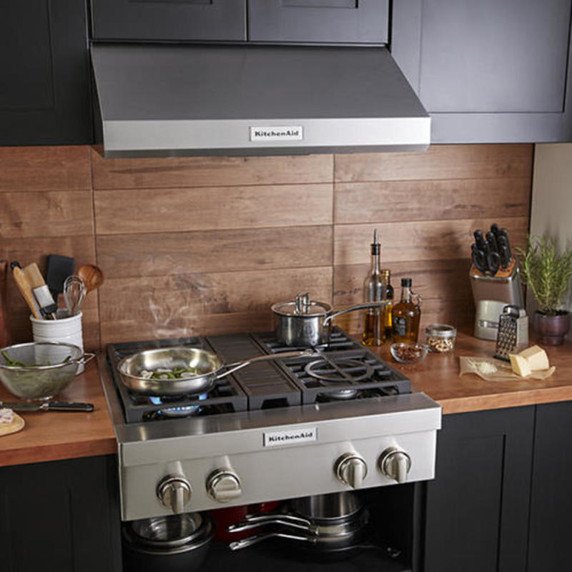

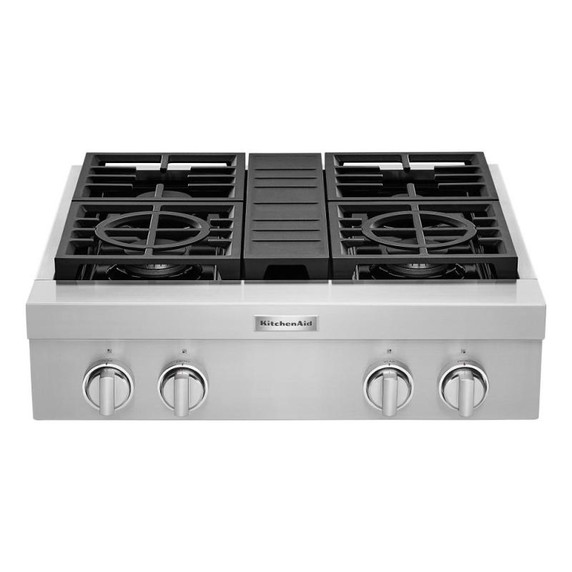

KitchenAid® 30'' 4-Burner Commercial-Style Gas Rangetop KCGC500JSS
Two 20,000 BTU Ultra Power™ Dual-Flame Burnersgive you precise control of powerful highs, steady lows and the wide range of temperatures in between. The versatile, dual-flame design lets you sear, sauté, simmer and sizzle, all on the same burner.

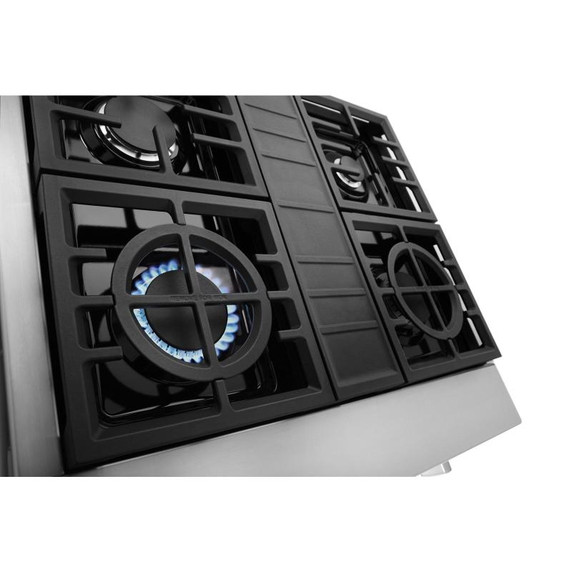

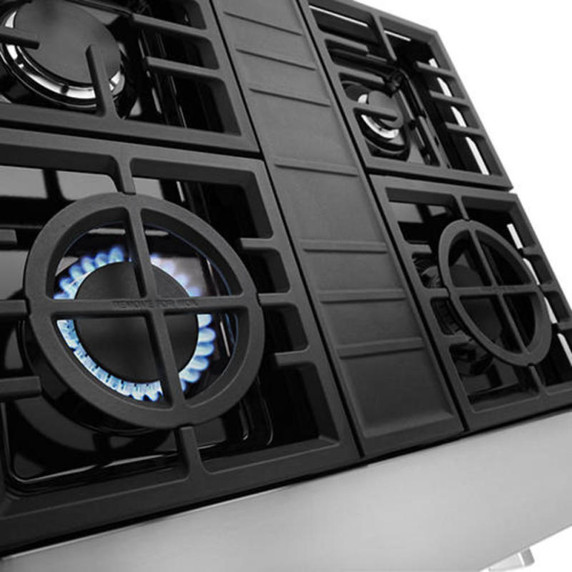

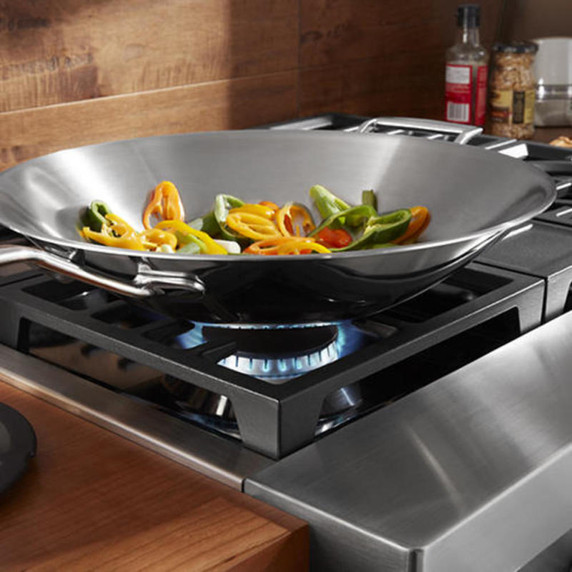

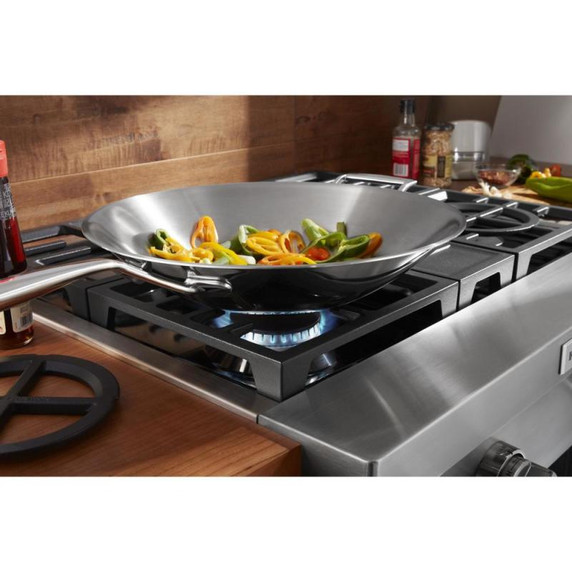

Three-Level Convertible Grateswith removable inserts match the heat to your technique. Leave the insert level for high-heat searing and sautéing, flip it over to lift your pan above the flame to simmer and melt or remove it to nestle a round-bottom wok in the flame for stir-fry.

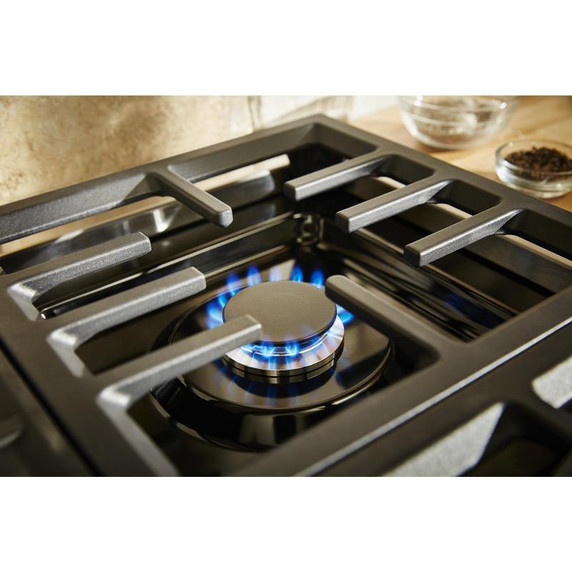

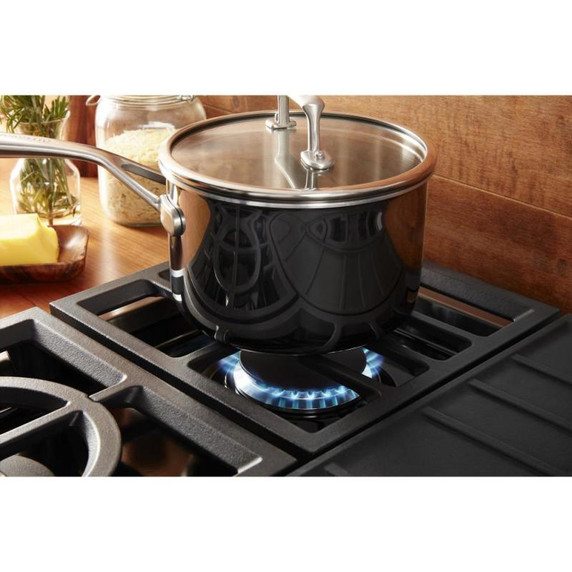

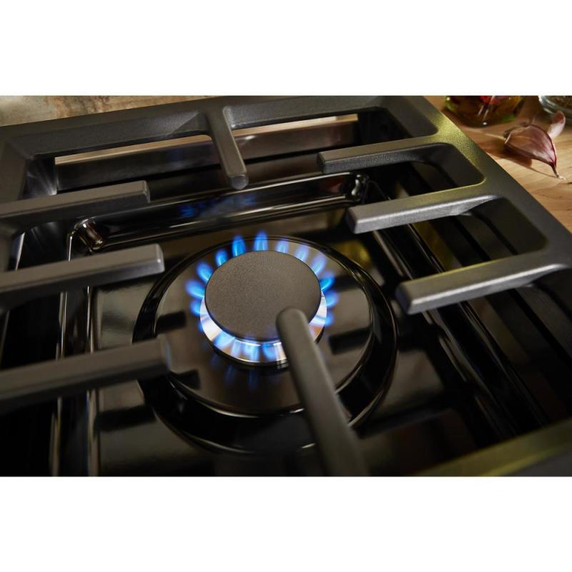

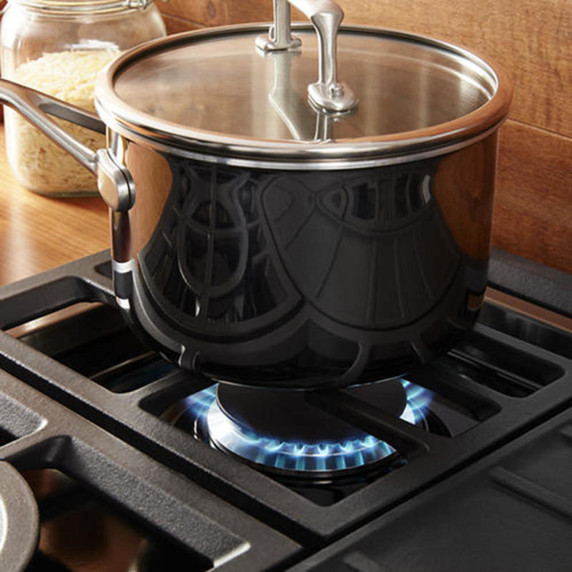

5,000 BTU Simmer & Melt Burner - Reduces to 900 BTUswith a low flame sized for small saucepans lets you reach and maintain low temperatures. Simmer sauces until they look, feel and taste just right and melt even delicate ingredients.
One 15,000 BTU Burnerdelivers the high-heat you need for successful searing, sautéing, stir-frying and quickly bringing large stock pots to a rolling boil.
Controls
Control TypeManual
Control LocationFront

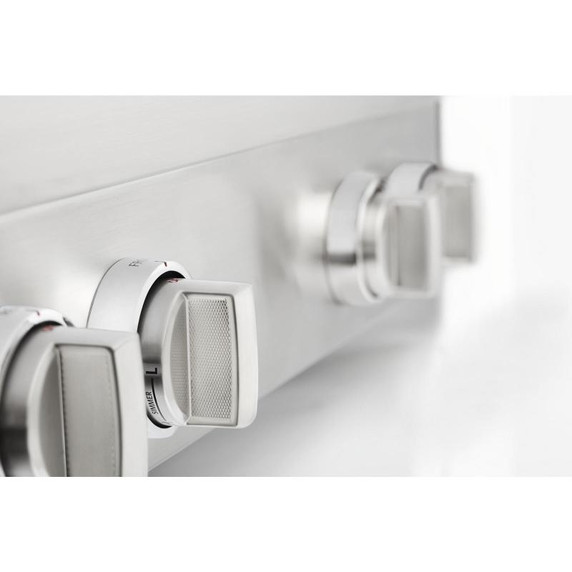

Knob TypeMetal
Electrical
Volts120
Hz60
Amps15
Power Cord IncludedYes
208v CompatibleNo
Configuration and Overview
Fuel TypeGas
Specifications
Country Of OriginUSA
Optional AccessoriesW10285447, W10115773
Extended Service Plan ParentEW09IW2Y, EW09IW1Y, EW09IW4Y
Product To Product PairsW10285447, KVUC600KSS, UVL5430JSS, W10115773
Features
Hot Surface Indicator LightNo
GriddleN/A
Automatic Pan DetectionNo
Digital DisplayNo
Downdraft VentNo
LP ConvertibleYes - Kit Included
Power BoostNo
Power Outage CompatibleYes
Heating Element On Indicator LightNo
Installs Over Built In OvenNo
Certifications
ULYes
ADA CompliantNo
Description
Size In30
Cooktop TypeRangetop
Cooktop Details
Cooktop Element StyleSealed Burners
Left Front Element Burner TypeDual
Right Front Element Burner TypeDual
Cooktop ConfigurationAll Burners

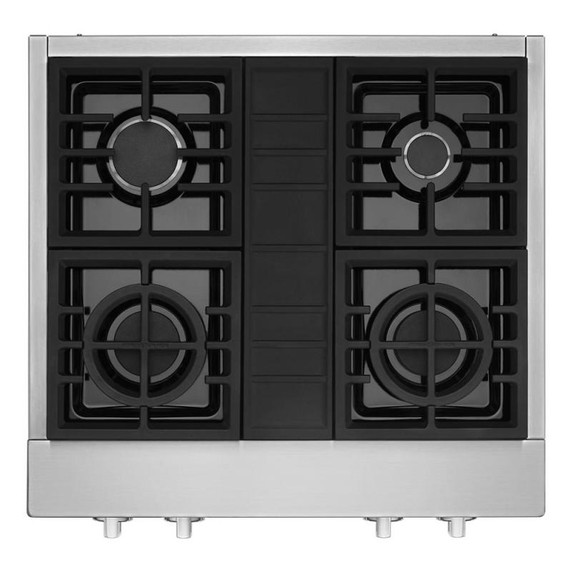

Number Of Cooking Element Burners4
Left Front Element Burner Power20000BTU/14000LP
Left Rear Element Burner Power15000BTU/11000LP
Right Front Element Burner Power20000BTU/14000LP
Right Rear Element Burner TypeSimmer
Left Rear Element Burner TypeProfessional
Right Rear Element Burner Power5000BTU/3000LP

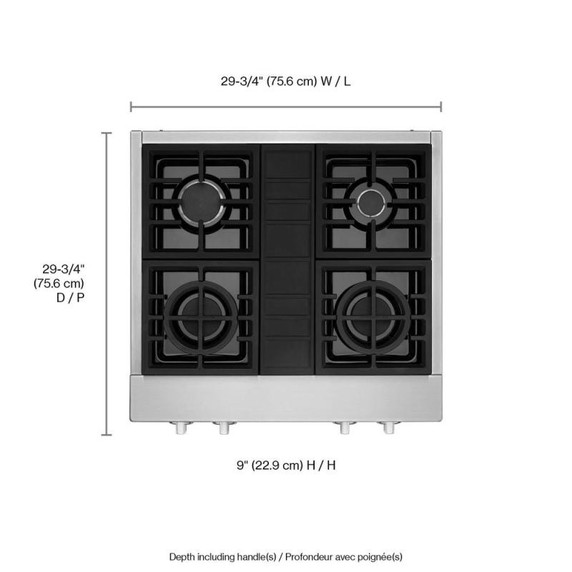

Depth27.88"
Height7.44"
Net Weight95.0 lbs.
Width29.75"
Cutout Width29.75"
Carton Depth Inch33.75
Carton Height Inch21.0
Carton Width Inch34.5
